Yamaha outboard shift linkage adjustment

Shift linkage on a Yamaha outboard Posted by maisweh on 7218 at 610 am to keakar quote. Motor boat techThis video will show you how to adjust Yamaha 150 outboard motor shift cable linkage.

To adjust the shift separate the upper and lower shift shafts at part 25.

Yamaha outboard shift linkage adjustment. Motor boat techThis video will show you how to adjust Yamaha 150 outboard motor shift cable linkage. Please subscribe and leave the comments below thank you. 1 pushing the shift cam down while turning the prop will engage the foot into reverse.

2 Then Put foot on to motor Alining the drive shaft. 3 once foot is in place push the shifter at the tiller into rev gear to allow Ferrel nut drop low enough to engage Shift cam rod going to foot. 5-8 threads onto cam shift rod then lock the Jam nut.

This video covers how to adjust the linkage on my Yamaha TLRT outboard. This is also commonly referred to as a link and sync. Ill cover the timing and thro.

Dont mess with the shift mechanism on either the motor or the lower unit and it will all go back together properly. Remove the lower unit. Put the shift handle into reverse gear.

Then put the lower unit into reverse gear. Reinstall the lower unit. Rotate the barrel nut so that it is centered on both shift pieces.

When you remove the carburetor from your Yamaha outboard motor or if the remote shift lever hesitates when you move the motor into or out of gear you probably need to adjust the shift cable. Usually you have to take slack out of the cable but whether theres too much slack or the cable seems short the procedure for making the adjustment is the same. To adjust the shift separate the upper and lower shift shafts at part 25.

Push down on the lower shaft to engage reverse. Then shift the handle into reverse. Make sure that the jam not is at the bottom of its threads join the two shafts using part 25.

Then make sure that you have a clean Neutral and a good FWD gear. This video is about a Evinrude 99 lower unit shift linkage setting. When the lower unit is off.

There is a lot of us that change the water pump our self and. If it was working fine when removed you may have misaligned the splines on the shift shaft and it would not be adjustable by the control cables. I would recommend dropping the gearcase and making sure both control lever and gearcase.

Yamaha 99 gear shift linkage can someone please explain the procedure to adjust Yes embarrassed to say so but we rewired a lot of stuff while on the hard in April. The current supply got accidentally inverted - so the fuse blew. - Move the shift rod in the opposite direction again while turning the prop.

• Go back down to the shift rod and make another mark at the same junction of rod and lower. - Position the shift rod so that it is halfway between the two marks at the junction of the lower leg. Outboard control cable adjustment for shifting gears - forward reverse.

If playback doesnt begin shortly try restarting your. Shift linkage on a Yamaha outboard Posted by maisweh on 7218 at 610 am to keakar quote. These things dont just stop working right unless you hit something with the lower unit to maybe bend the shift linkage which is very near impossible then something internal to the lower unit is buggered up and time to bring it to the shop before damaged becomes worse.

This adjustment also puts the actual Neutral position of the shifter where Reverse should be and any position from Neutral to Forward puts the gearbox in forward. There were no problems shifting into reverse before we replaced the impeller so it shouldnt be a matter of chewed-up cogs refusing to engage but I cant figure out any other possibilities. If this works then the linkage is probably out of adjustment.

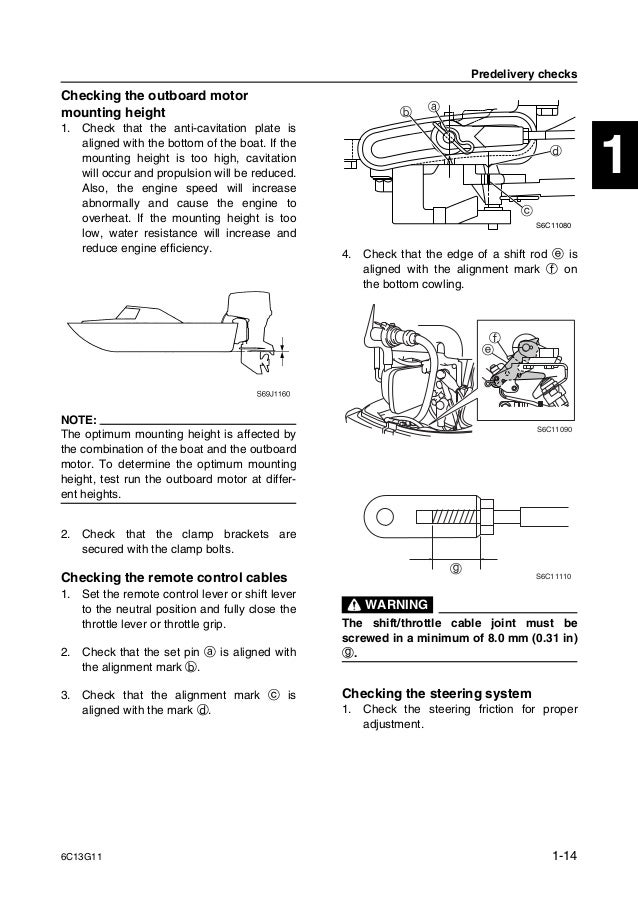

On the link cable there is typically a bolt in an oval shaped metal near the transmission shift lever. 1Detach the shift cable from the transmission shift lever 2Put the transmision shift lever in the park position and also the shifter in the cab 3Loosen the adjustment bolt. How Yamaha Outboard Gearbox works - YouTube.

Shift linkage adjustment. Jump to Latest Follow 1 - 4 of 4 Posts. Linkage adjustment Evinrude 30hp - YouTube.

2001 8HP Honda shift rod Linkage adjustment. I had to take my shift rod loose at the top so cant help wmeasurement. It sounds like you are close so now a little trial and error.

Since reverse is done at the farthest back position I would thing you would need to shorten what you have on the rod. Hope that makes sense to you. My 30 HP Yamaha 2 stroke 2 cylinders outboard gear shift lever only move the vertical shift rod about 18mm from forward to reverse.

The lower shift rod need at lease 20mm vertical movement for the full gear shift. I am only getting forward neutral or with adjustment get neutral and reverse. Install the shift cable to the engine first.

The shift cable is the first cable to move when the remote control handle is moved out of neutral. Position the shift mechanism into the neutral potion. Locate the center point of the slack or lost motion that exists in.

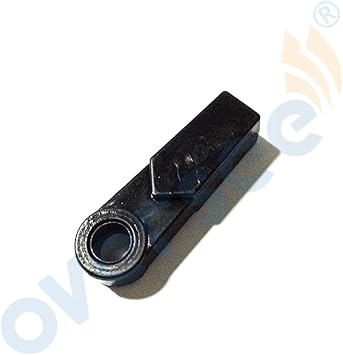

Find Shift Rod Connector - 61N-44146-00-00 here. 5 Arriving Soon - Backordered. Offering discount prices on OEM Yamaha Marine parts for over 50 years.

There should be my Yamaha 90TLRP has a turnbuckle type adjustment that you adjust to have the gearshift bell crank under intake manifold align with an arrow cast into the case. Has lower unit been opened recently to replace water pump. Common problems show up with shifting when rod is not properly re-connected.
